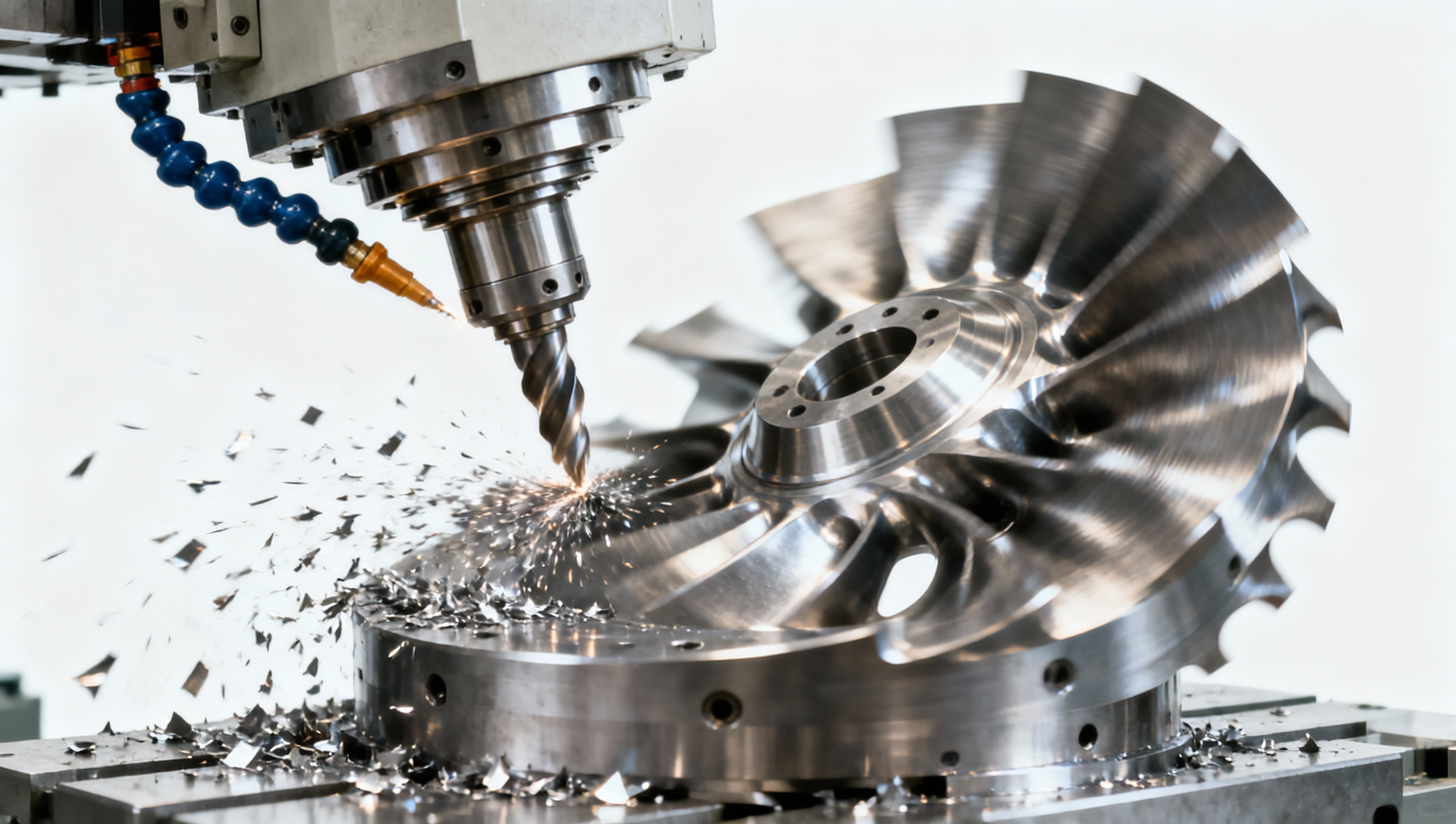

5-Axis Machining for Impellers: Complex Geometry Made Possible

Discover how 5-axis machining revolutionizes impeller production by enabling complex geometries with unmatched precision. This advanced CNC manufacturing technology combines multi-axis capabilities with high-speed performance to create intricate components for aerospace, energy equipment, and automotive applications. Our guide explores how modern machine tools achieve space-saving, energy-efficient production while maintaining the strict tolerances required for critical rotating machinery components.

Why 5-Axis Machining is Essential for Impeller Manufacturing

Impellers represent one of the most challenging geometries in precision manufacturing, requiring complex curved surfaces, tight tolerances (±0.01mm typical), and smooth transitions between blade profiles. Traditional 3-axis CNC machines struggle with these requirements, often necessitating multiple setups that increase production time by 30-50% and introduce alignment errors.

5-axis simultaneous machining solves these challenges through:

• Continuous tool positioning at optimal angles (typically ±30° to ±120° tilt)
• Single-setup production reducing cumulative errors below 0.005mm
• High-speed machining capabilities (15,000-30,000 RPM spindle speeds)
• Advanced tool path optimization for thin-wall machining (0.5-3mm wall thicknesses)

Technical Comparison: 5-Axis vs Traditional Machining for Impellers

The table below highlights key performance differences between 5-axis and conventional machining approaches for impeller production:

For aerospace impellers requiring AS9100 certification, 5-axis machines demonstrate 40-60% better process capability (Cpk) compared to conventional methods, making them essential for mission-critical components.

Key Considerations When Selecting 5-Axis Machines for Impellers

Purchasing decision-makers should evaluate these 5 critical factors:

1. Dynamic Accuracy: Look for machines with ≤8μm volumetric accuracy and ≤0.005mm/m positioning repeatability
2. Work Envelope: Minimum 400mm diameter capacity for most industrial impellers
3. Tool Changer Capacity: 40+ tools recommended for complex impeller programs
4. CAM Integration: Verify compatibility with HyperMill, PowerMill, or NX CAM software
5. Coolant Through Spindle: 70+ bar pressure required for titanium and superalloys

Material-Specific Machining Parameters

Optimal cutting parameters vary significantly by material:

Frequently Asked Questions

What's the typical lead time for 5-axis impeller machining?

Standard lead times range from 2-4 weeks for prototype quantities (1-5 pieces) to 6-8 weeks for production batches (50+ units). Complex aerospace impellers with NADCAP certification may require 8-12 weeks due to additional quality validation steps.

How does 5-axis machining impact impeller performance?

Properly machined 5-axis impellers demonstrate 3-7% better hydraulic efficiency compared to conventionally manufactured versions due to superior surface finish and precise blade geometry. This translates to significant energy savings in pump applications.

What maintenance considerations exist for 5-axis impeller production?

Key maintenance requirements include:

• Quarterly calibration of rotary axes (≤0.002mm runout)
• Monthly ballbar testing for volumetric accuracy
• Daily lubrication of linear guides and ball screws
• Annual replacement of spindle cooling system filters

Optimizing Your Impeller Production with 5-Axis Technology

Our engineering team specializes in transitioning manufacturers from conventional to 5-axis impeller production, offering:

• Process validation with actual cycle time reductions of 35-60%
• Material-specific tooling packages for aluminum, titanium, and superalloys
• Post-processor development for your specific machine/CAM combination
• First-article inspection reports meeting ISO 1940-1 balance standards

Contact our applications engineers to discuss your specific impeller requirements, including material specifications, production volumes, and quality certifications needed. We provide comprehensive machine demonstrations with your actual CAD models to validate performance before purchase.
