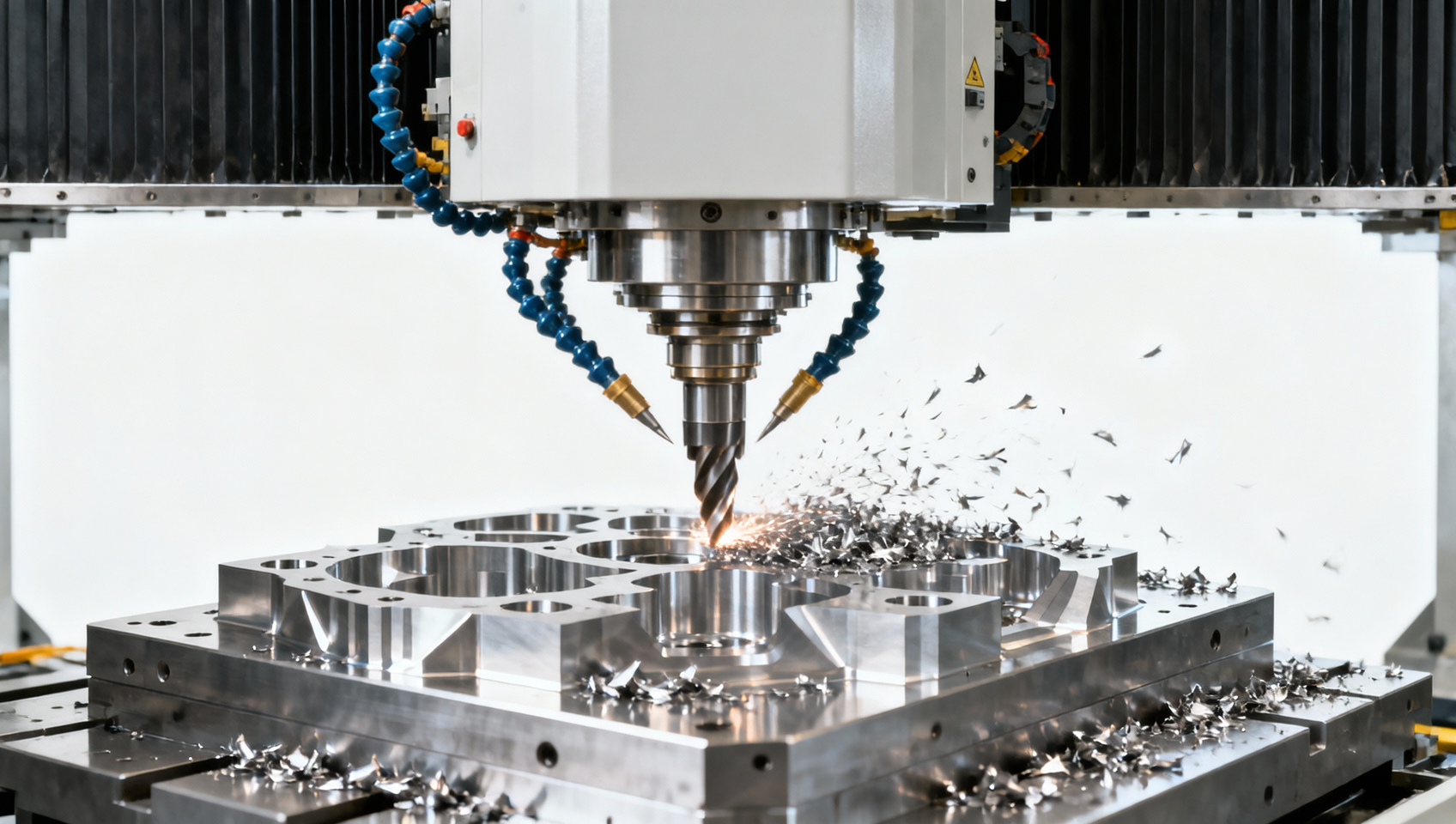

Mold Making Machine Tools: Key Features for Complex Geometries

In today's precision-driven manufacturing landscape, mold making machine tools with advanced CNC capabilities are revolutionizing complex geometry production. Our high-precision CNC manufacturing solutions combine multi-axis machining, automated production features, and space-saving designs to deliver cost-effective mold making for aerospace, automotive, and medical device industries. Discover how energy-saving machine tools with quick setup capabilities can transform your manufacturing process while maintaining exceptional accuracy for even the most demanding applications.

Critical Capabilities for Complex Mold Geometries

Modern mold making requires machine tools that can handle intricate contours, undercuts, and tight tolerances between 0.005–0.02mm. The following technical capabilities separate high-performance systems from conventional CNC machines:

• 5-axis simultaneous machining for unrestricted toolpath control
• High-speed spindles (15,000–40,000 RPM) with thermal stability systems
• Micro-milling capabilities down to 0.1mm tool diameters
• On-machine probing for dimensional verification

Leading systems now incorporate adaptive machining algorithms that automatically adjust cutting parameters based on real-time tool wear monitoring, extending tool life by 30–50% in hardened steel applications.

Mold Making Machine Comparison: Key Specifications

When evaluating CNC machines for mold production, these technical parameters directly impact geometric accuracy and production efficiency:

For medical device molds requiring micro-features below 0.1mm, premium systems with linear motor drives and active vibration damping typically deliver 40–60% better feature definition compared to conventional ball screw machines.

Industry-Specific Mold Making Requirements

Automotive Injection Molds

Large-tonnage molds for automotive components demand:

• X/Y travels over 2500mm for bumper molds
• High-rigidity structures handling 500+ ton clamping forces
• Conformal cooling channel machining capabilities

Aerospace Composite Tooling

CNC machines for aerospace molds must accommodate:

• Low-CTE materials like Invar (36% nickel steel)
• Surface accuracies within 0.025mm/m for large tools
• Thermal compensation systems for temperature swings

Optimizing Mold Production Efficiency

Advanced machine tools now integrate multiple productivity features that reduce mold making cycles by 25–40%:

1. Automated tool changers with 60+ tool capacity
2. Pallet changers for continuous operation
3. In-process measurement systems
4. Laser-assisted tool setting

Modern control systems can store 500+ tool offsets and automatically compensate for thermal growth across all axes, maintaining dimensional stability during prolonged machining sessions.

Frequently Asked Questions

What's the minimum investment for capable mold making CNC machines?

Entry-level 3-axis machines start around $150,000, while full 5-axis systems for complex geometries typically range $400,000–$800,000. High-precision machines for optical/lens molds can exceed $1.2 million.

How do I choose between vertical and horizontal machining centers?

Vertical machines suit 80% of mold applications, while horizontal configurations excel for:

• Very large molds requiring multiple setups
• Applications with significant chip evacuation needs
• Production environments running 24/7

Next Steps for Your Mold Making Operations

Our engineering team specializes in matching CNC machine capabilities to your specific mold making requirements. Contact us for:

• Application-specific machine recommendations
• Side-by-side ROI comparisons
• On-site demonstrations of complex geometry machining
• Customized training programs for your operators

Schedule a consultation to discuss how our ISO 9001-certified solutions can optimize your mold production workflow while maintaining tolerances below 0.005mm.
